Condensing Boiler (SCB)
· Economic:① Official certificate/certification of high
effectiveness (Low calorific power
standard 101%)
② Epoch-making fuel cost curtailment
(exhaust gas waste heat temperature
65°C or so)
③ Advancement in quality and
productivity by the rich stock of steam.
④ Life-time existence with strong
durability by the special combustion
structure.
· Convenience:① Automatic controlled system that all
functions are achieved perfectly by
single-touch
② Easy manage and repair by the manual
control system
③ High safety by the double or triple
safety control system
④ Great convenience to check the status
of equipment by built in type of
additional equipment which related to
automation./automated equipment
· Place to use:Product that should use certainly in large size industry that use from gas(LNG).
Dye works / Dumpling factory / General Food factory / Heating and hot-water supply / Sauna / Chemical Plant / Non-rigid type food factory / Other large size industry


Division / Type
SCB-100
SCB-150
SCB-200
SCB-250
SCB-300
SCB-400
SCB-500
SCB-600
SCB-700
SCB-800
SCB-1000
Proper form of Evaporation
kg/h
1,000
1,500
2,000
2,500
3,000
4,000
5,000
6,000
7,000
8,000
10,000
Max. Working Pressure
kg/㎠
10{1.0MPa}
Efficiency
%
More than 99%
Electric Tranmission Area
㎡
15
25.2
30.3
37
44.4
58
74
88
99
114
143
Weight
Ton
4.0
4.8
5.1
5.8
6.5
7.2
8.6
10.6
13.3
14.5
17.4
Titration
ℓ
1,650
1,920
2,200
2,800
3,082
4,600
5,800
6,950
9,100
13,300
14,700
Fuel Consumption
LNG
N㎥
63.9
95.8
127.8
159.7
191.7
255.8
319.4
383.3
447.2
511.1
638.9
LPG(Propane)
N㎥
28.3
42.4
56.5
70.7
84.8
113
141.3
169.6
197.8
226.1
282.6
Capacitance of Electric
kW
5.9
7.7
9.7
14
14
18.7
18.7
19
24.5
27.5
37.5

Joint Valve
Main Steam Valve
A
50
65
80
80
80
100
125
125
150
150
200
Progression Valve
25
25
40
40
40
40
40
40
50
50
50
Drainage Valve
40
40
40
40
40
40
40
40
50
50
50
Safety Valve
25
32
40
40
40
25,40
40×2
40×2
40,50
50×2
50×2
Fuel Gas
25
40
40
50
50
50
50
65
65
80
80
Chimney
ømm
300
350
400
500
550
600
650
700
750
800
900

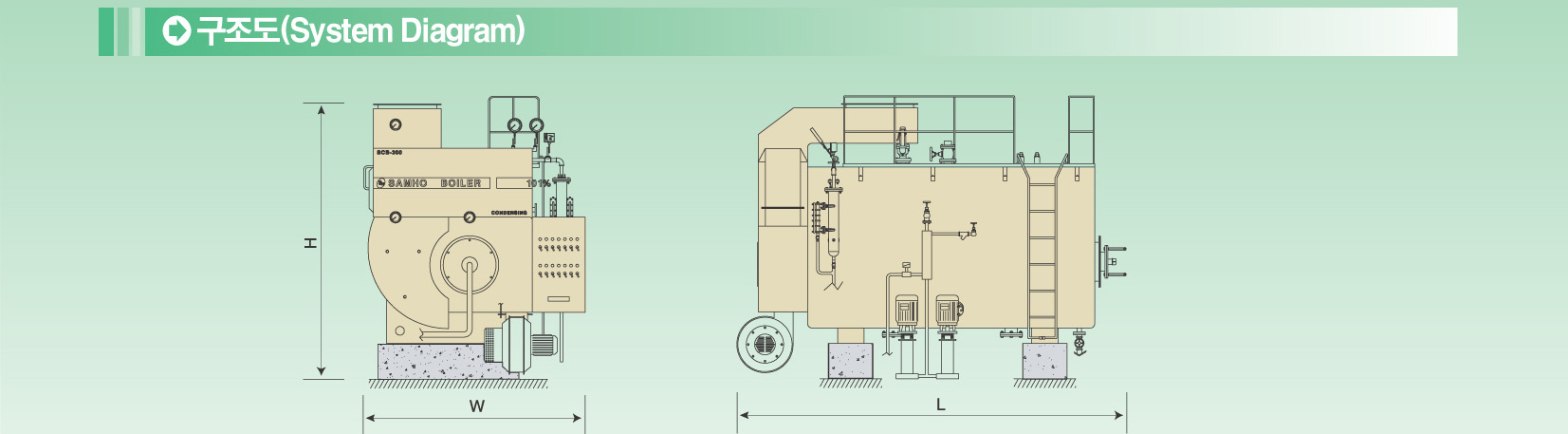

Minimum Dimension
Width
mm
1,670
1,720
1,800
1,890
2,050
2,290
2,380
2,634
2,702
2,862
3,346
Length
3,160
3,550
3,770
3,800
4,100
4,500
4,810
5,162
5,467
5,772
6,076
Height
2,120
2,280
2,510
2,590
2,700
2,980
3,120
3,632
3,700
3,860
4,344
Maximum Dimension
Width
mm
2,180
2,200
2,290
2,460
2,550
2,660
2,758
3,012
3,080
3,240
3,724
Length
3,880
4,030
4,128
4,280
4,380
4,480
4,940
5,692
5,897
6,402
6,706
Height
2,690
2,870
3,000
3,020
3,070
3,096
3,178
3,432
3,950
4,010
4,144

※ Low calorific power fuel
① LNG：41.45 MJ/N㎥{9,900kcal/N㎥}, ② LPG{Propane}：93.7 MJ/N㎥{22,380kcal/N㎥}
※ The specification list are subject to change without prior notice to improve the performance and technology
    development.
